Description
Ventilation Modes
Apnea
Assist Control-Pressure
Assist Control-PRVC
Assist Control-Volume
CPAP-Pressure Backup
CPAP-Volume Backup
NIV- Bi-level
SIMV-Pressure
SIMV-Volume
Monitors/Alarms
Rate
Oxygen (O2)
PEEP
EPAP
IPAP
Apnea
ExhTV
ExhMV
Peak Pressure
Mean Pressure
Low Battery
I:E Ratio
Included Accessories
TV-100 Operator’s Manual
Pole Mounting Bracket
Disposable Adult Circuit
Disposable Infant Circuit
Adult Test Lung
Infant Test Lung
Pediatric/Adult Flow Sensor
Infant Flow Sensor
Disposable Patient Filter
O2 High Pressure Supply Hose
AC Adapter with Cord
TV-100 Battery (x2)
Optional Accessories

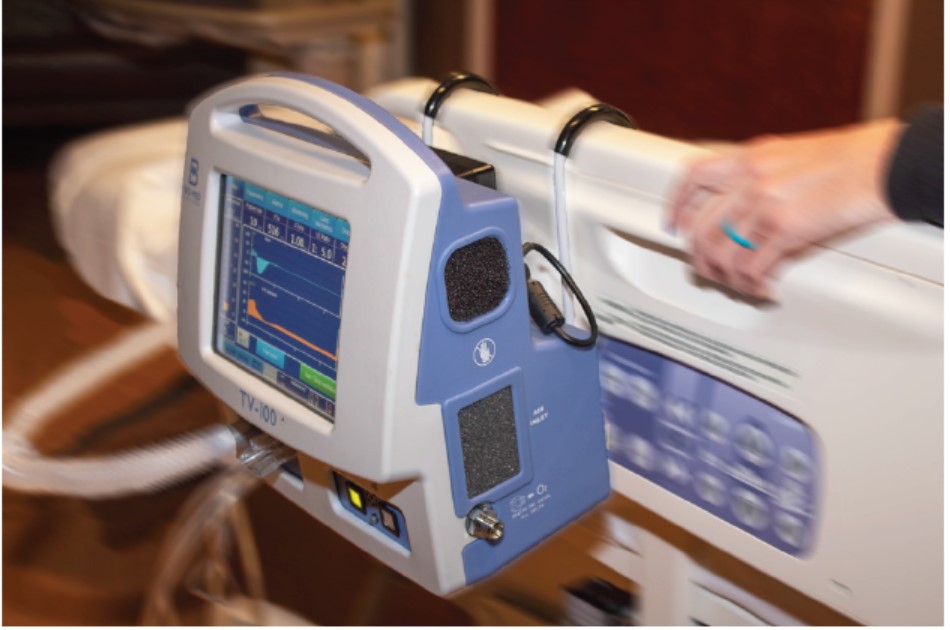

Bed Rail Mounting Bracket
Disposable Pediatric Circuit
HMEF Patient Filter
O2 Filter/Water Trap (International Only)
O2 High Pressure Supply Hose (Hand Tighten)
Pediatric Test Lung
TV-100 Battery Charger
Physical Characteristics
Size: 12.8″ x 11.9″ x 7.6 (32.5 cm x 30.2 cm x 19.3 cm)
Weight: 15.6 lbs. (7.1 kg) (Without AC Adapter)
Specifications
Parameter
Apnea Alarm…………………………….
I:E Ratio……………………………………
Pressure Support……………………….
Rate (Pediatric/Adult)………………..
Rate (Neonatal)…………………………
SIMV Rate………………………………..
Expiratory Time…………………………
Inspiratory Time………………………..
Flow Trigger (Pediatric/Adult)……..
Flow Trigger (Neonatal)……………..
Pressure Trigger………………………..
Purge Flow……………………………….
Base Flow (Pediatric/Adult)………..
Base Flow (Neonatal)…………………
Flow (Pediatric/Adult)………………..
Flow (Neonatal)…………………………
PEEP/CPAP (Pediatric/Adult)………..
PEEP/CPAP (Neonatal)………………..
EPAP…………………………………………
IPAP………………………………………….
PIP (Pediatric/Adult)…………………..
PIP (Neonatal)…………………………..
Tidal Volume (Pediatric/Adult)…….
Tidal Volume (Neonatal)……………..
Pop-off Relief Valve (Ped./Adult)….
Pop-off Relief Valve (Neonatal)……
Range
10 – 60 seconds
3:1 to 1:99
1 – 60 cmH2O
5 – 100 bpm
5 – 150 bpm
0.6 – 50 bpm
0.2 – 99.9 seconds
0.1 – 3.0 seconds
0.5 – 10 lpm
0.5 – 10 lpm
-0.2 to -10 cmH2O
40 – 60 mlpm
6 lpm
2.5 lpm
0.1 – 180 lpm
0.1 – 15 lpm
0 – 35 cmH2O
0 – 25 cmH2O
4 – 20 cmH2O
4 – 40 cmH2O
3 – 99 cmH2O
3 – 60 cmH2O
75 – 2500 ml
2 – 100 ml
99 cmH2O
60 cmH2O
