Description
TRIANGO 80 – proven thousands of times.
The TRIANGO 80 treatment luminaire delivers 80,000 lux at one metre and has inspired doctors worldwide for more than 10 years.
Design and light technology
The versatile examination luminaires support localized lighting on the patient’s body. Their illumination intensity, light color and color rendering are adapted to assist in diagnosis. The examination luminaires’ appealing design, modern light technology and high light quality ensure optimal examination illumination in all medical fields.
TREATMENT LUMINAIRES TRIANGO 80
A proven classic. TRIANGO 80
With 80,000 lux at a distance of one meter and a light field diameter of 18 cm, the medical staff has a powerful treatment light at its disposal.
The illumination field is pleasantly homogeneous and continuously dimmable.
The arm system enables simple and accurate alignment of the lamp head position.
The handle makes it easy for right-handed and left-handed users to position the light.
Normative requirements of IEC 60601-1
- Easy to move
- Color temperature 3,000K to 6,700K
- Color rendering index Ra > 85
- For examination rooms, etc.
- Stable light quality
- No failure safety
Appropriate light
Steplessly dimmable between 30% and 100% using the rotary knob
Mobile
A large range of motion for optimal illumination of the patient
Hygienic
Removable and sterilisable handle
Technical data TRIANGO 80
| Light output * | 80,000 Lux @ 1.0 m |
| Colour temperature * | 4,500 K |
| Colour rendering | Ra > 95 |
| Light field | ⌀ 18 cm |
| Illumination depth | 124 cm |
| Operation | Rotary knob on the luminaire head |
| Standards | EN 60601-1, EN 60601-2-41 |

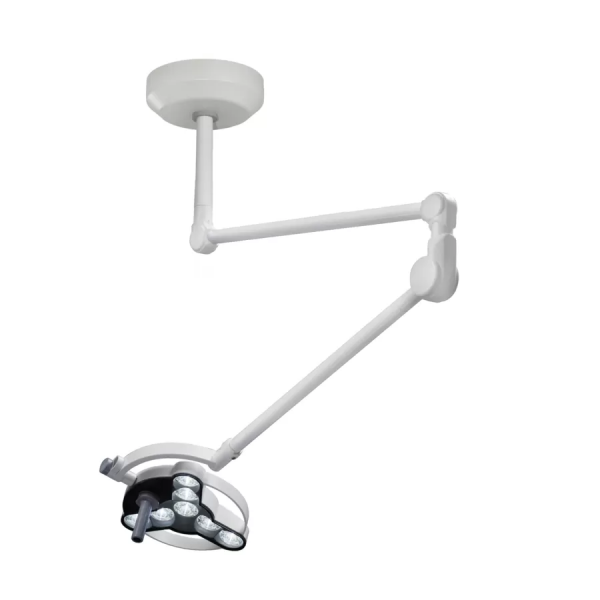

ceiling assembly

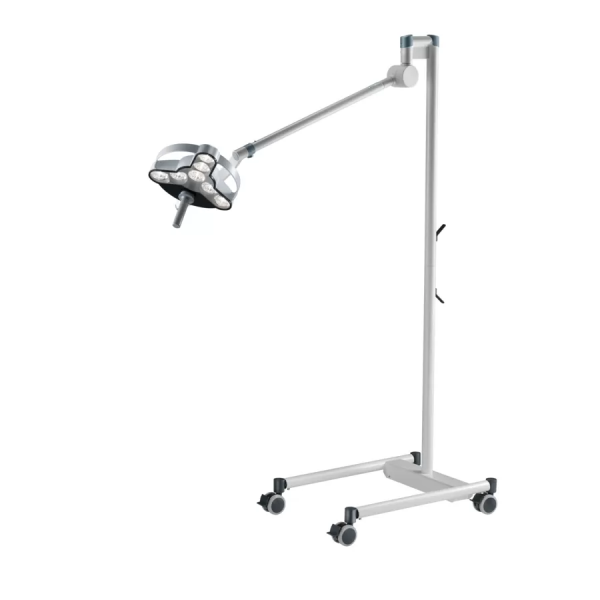

mobile version
