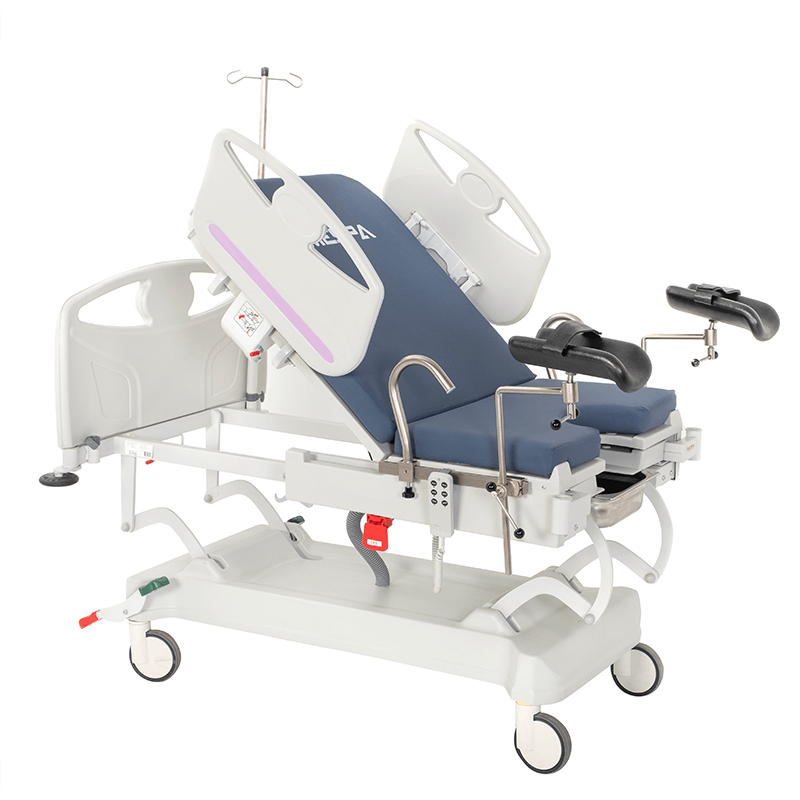

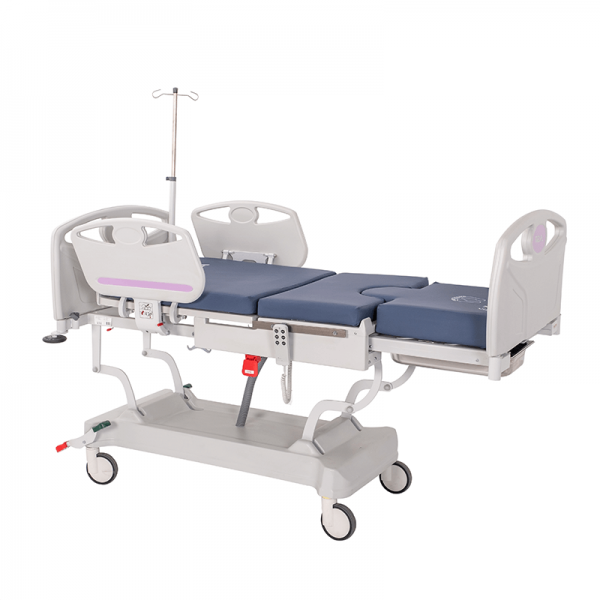

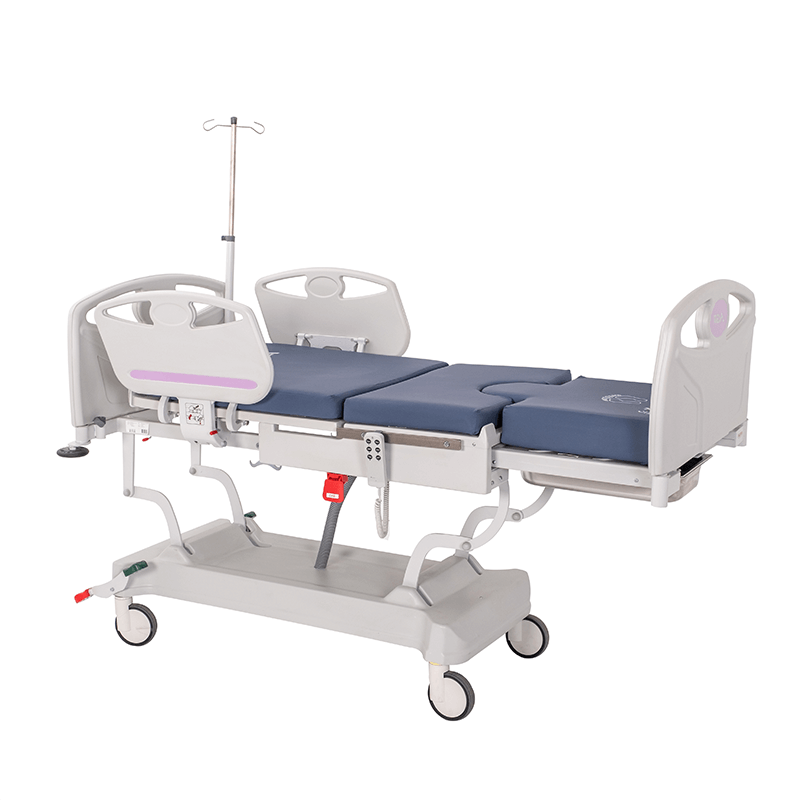

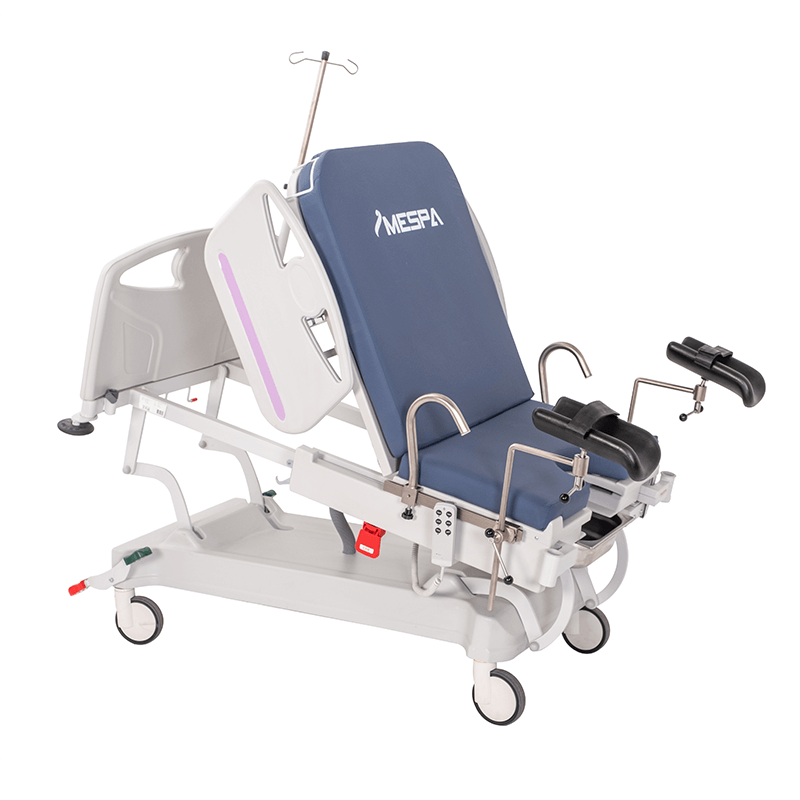

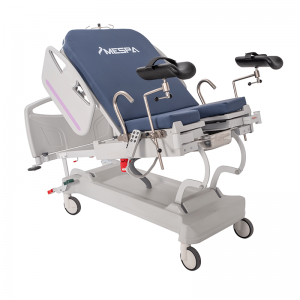

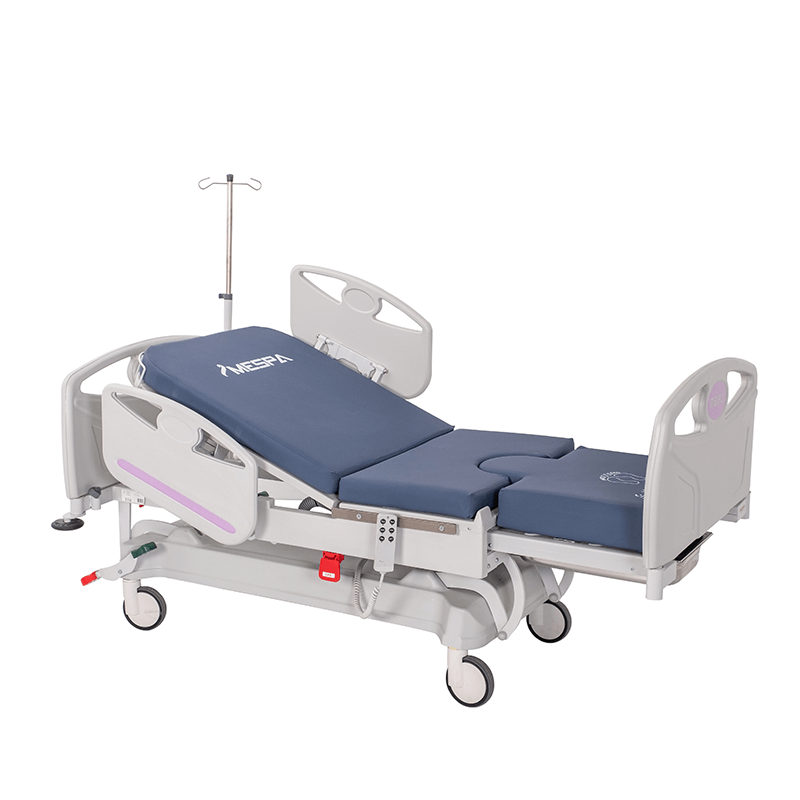

MESPA ELEGANT 5040

ELEGANT 5040

Electronic Delivery Bed

As a multipurpose maternity service bed, ELEGANT 5040 combine inspection, delivery and post-natal functions in a single structure. The innovation in design, gives ELEGANT 5040 a capability of extending to a bed size from a gynecology table, aiming at a smooth labor process.

Categories: ,

Description

FEATURES

  • 3 motors

  • Electronic adjustments of backrest, height,

  • Trendelenburg

  • Reverse Trendelenburg functions

  • Hand control unit

  • Anti-microbial, water proof, flame retardant, air permeable mattress

  • Removable footrest mattress

  • Stainless steel waste bin

  • Lockable side rails

  • Removable, adjustable polyurethane leg supports

  • Central lockable single castors

  • Protective plastic bumpers

  • Easy cleanable, detachable, ABS head and foot boards

  • Stainless steel height adjustable IV Pole

  • ABS covered sub-frame

  • Stainless steel accessory rails

  • Easily cleanable, ABS mattress platform

  • Electrostatic powder coated metal frame

  • IV pole sockets

TECHNICAL SPECIFICATIONS

Backrest Angle : 0°-70°
Trendelenburg Angle : 0°-14°
Reverse Trendelenburg Angle : 0°-14°
Castor Diameter : 150 mm
Safe Working Load Capacity : 250 kg
Weight : 123 kg
External Dimensions : min 102 x 153 cm max 102 x 200 cm
Bed Surface : 85 x 185 cm
Height (without mattress) : 58 – 90cm
Under bed Clearance : 17 cm
Mattress Thickness(backrest and pelvic sections) : 8 cm
Footrest Mattress Thickness : 11,5 cm
Power In : max. 3,15A 100V – 240V ~ 50/60 Hz
Electrical Shock Protection : Class I, Type B
Liquid Ingress Protection : IPx66
