The best operational efficiency

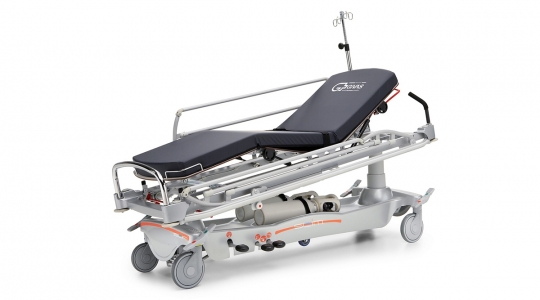

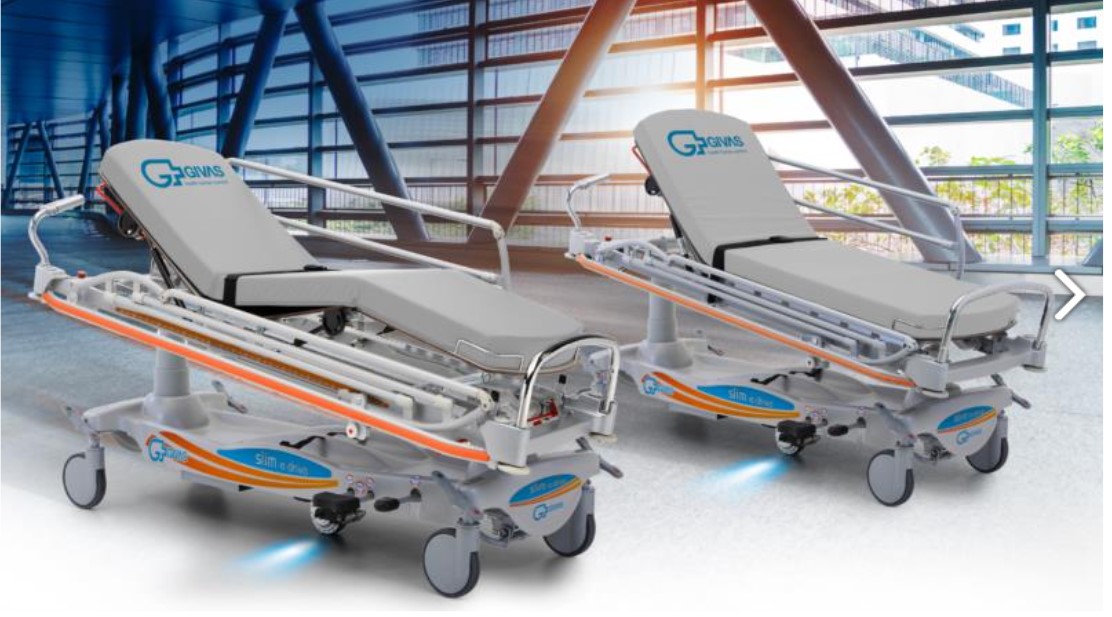

“BT1220 Slim e-drive” stretcher with 2 sections, adjustable height and Trendelenburg, reverse-Trendelenburg on columns. Endowed with 5th motorized wheel and high containment folding side rails with vertical bars.
The new BT stretchers with e-drive system have been specifically studied to be used by just one operator ensuring, thanks to the 5th motorized wheel and to the push-touch only, no effort for forward-backward and lateral movements, for an easier transport in total safety and simplicity.
Standard equipment
• Pair of containment side rails with vertical bars integrated to the structure, folding flush with the mattress platform;
• Safety belt for patient containment;
• Velcro strips on the mattress platform for the fixing of the mattress;

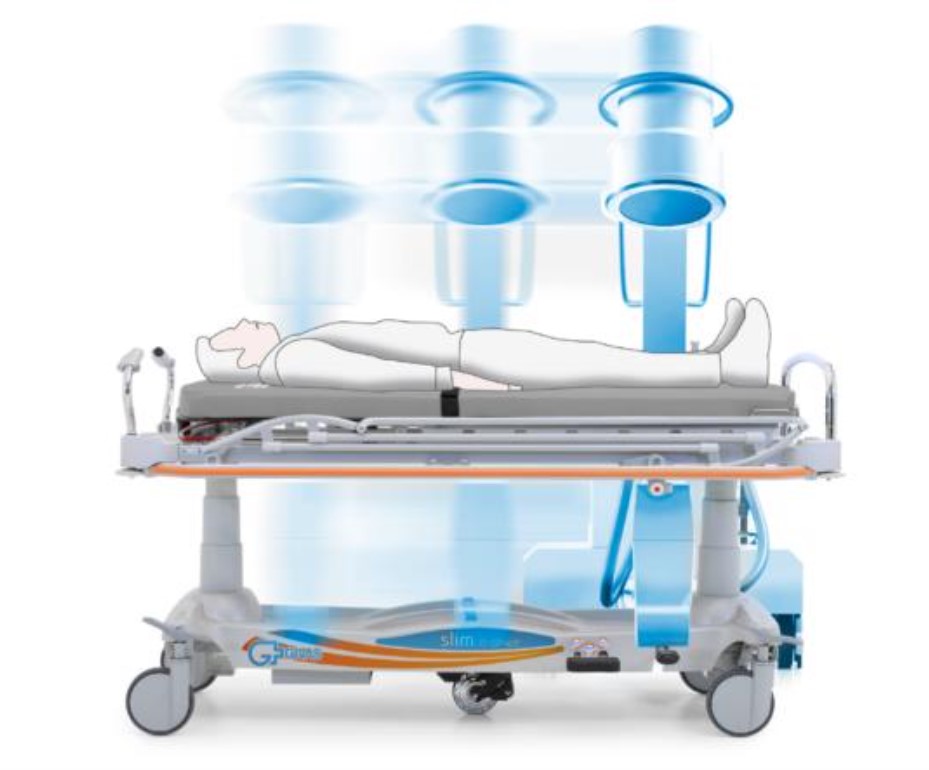

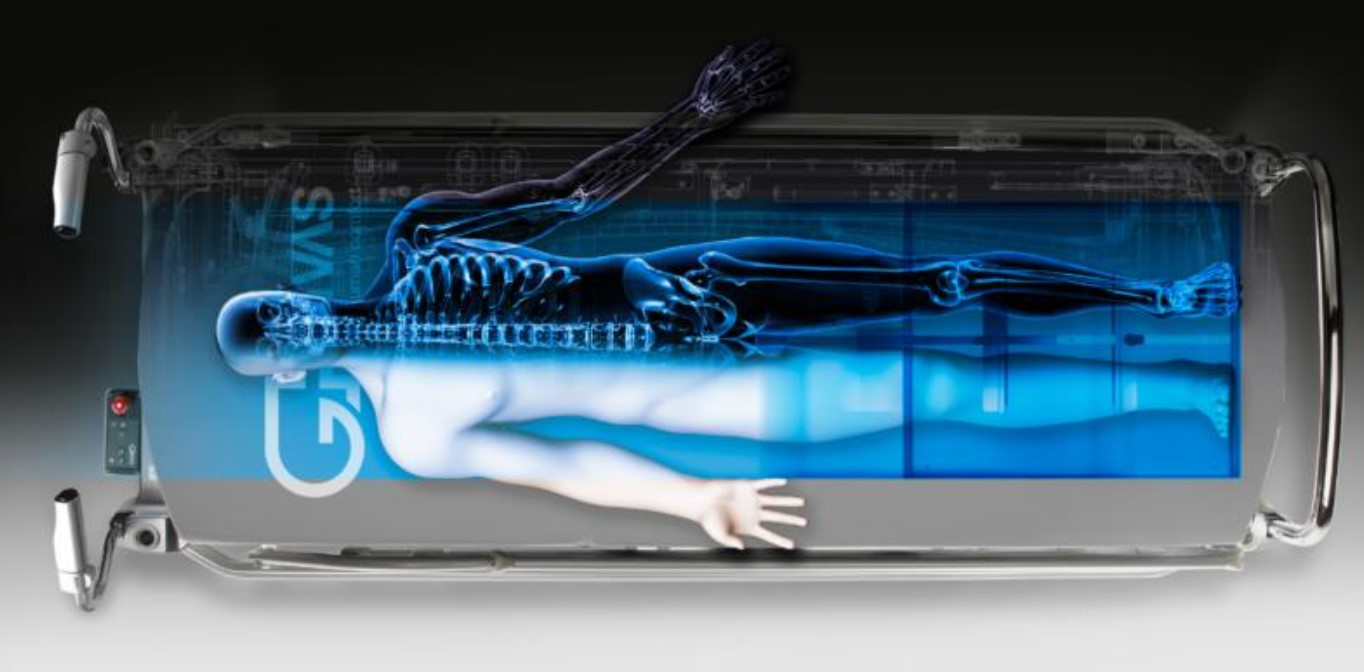

• Runners below the entire length of the mattress platform for the sliding of the x-ray cassette;

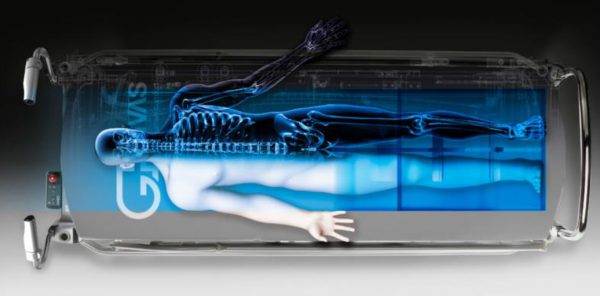

• Radiolucent mattress platform made of HPL;
• Lateral bumper bars made of soft non-marking plastic material for the entire length of the stretcher;
• N° 4 bumper wheels Ø 100 mm made of non-marking rubber at the 4 corners;
• N° 4 receptacles for the housing of the I.V. stand and lifting pole at the 4 corners;
• Bobble level to indicate Trendelenburg/reverse-Trendelenburg incline degree;
• Couple of retractable push handles at the head end as control for the electric traction wheel;
• Terminal for equipotential connection located under the head end;

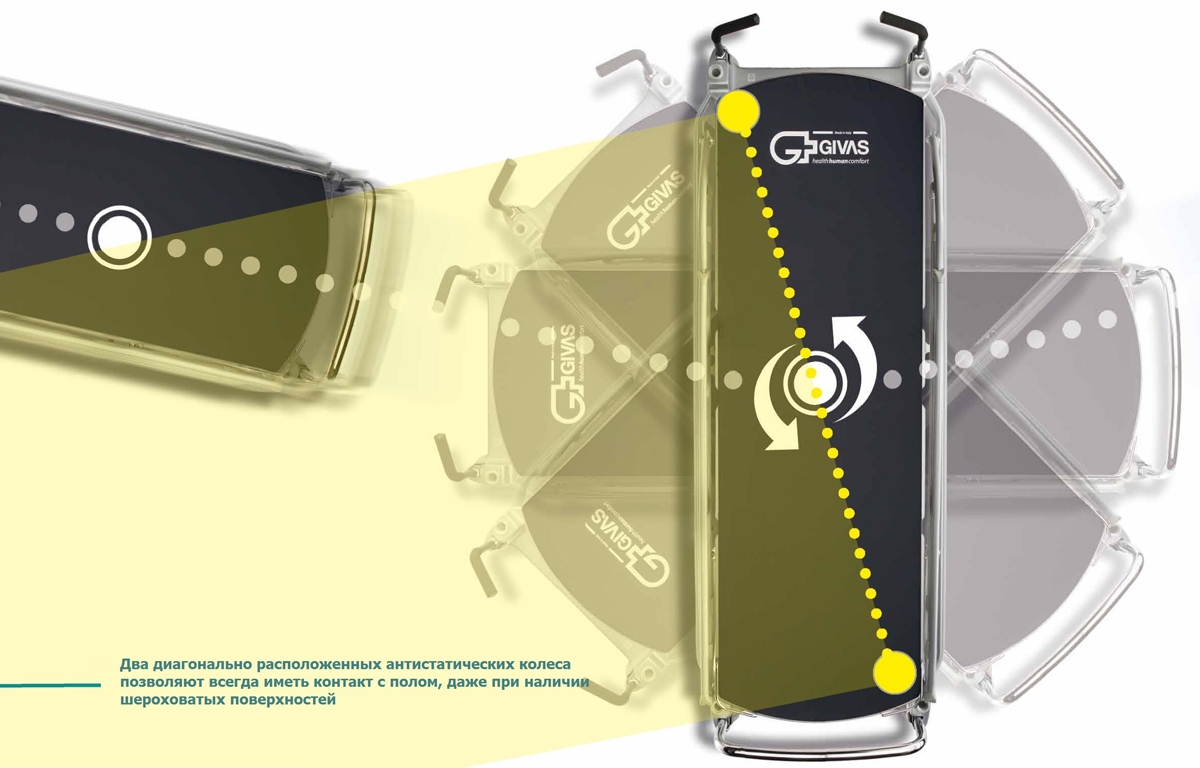

• N° 4 single wheels Ø 200 mm with anti static system and 5th motorized pivoting electric wheel.
STANDARD EQUIPMENT
– pairs of folding side rails with vertical sliding;
– patient safety strap;
– anchoring with velcro for fixing the mattress to the top;
– guides along the entire length of the lying surface for the sliding of the x-ray cassette;
– radiolucent lying surface;
– side bumper bars;
– 4 bumper wheels;
– presence of spirit level for indication of Trendelenburg / Counter-Trendelenburg inclination degrees;
– pair of retractable push handles on the head side with integrated control for the electric traction/motorized wheel.
COMPULSORY COMPONENTS – FOOT SIDE ONLY
– BT0030 – Push handle – closed;
– BT0040 – Pair of retractable push handles
ACCESSORIES
– BT0010 Antistatic mattress
– BT0025 HPL plane/holder for monitor and documents
– BT0035 Cardiac massage axis
– BT0045 Support for paper sheet
– BT0055 x-ray cassette
– BT0056 x-ray cassette+ x-ray cassette adjustable support + metric stickers
– BT0065 supports placed on the back of the backrest to fix the x-ray on it
– BT0070 bags holder – right or left side
– BT0075 accessory holder bar – right or left side
– BT0060 IV pole with 4 hooks
– BT0080 Side arm rest (available with BT0075)
– ZBT00001 additional safety belt
DIMENSIONAL DATA

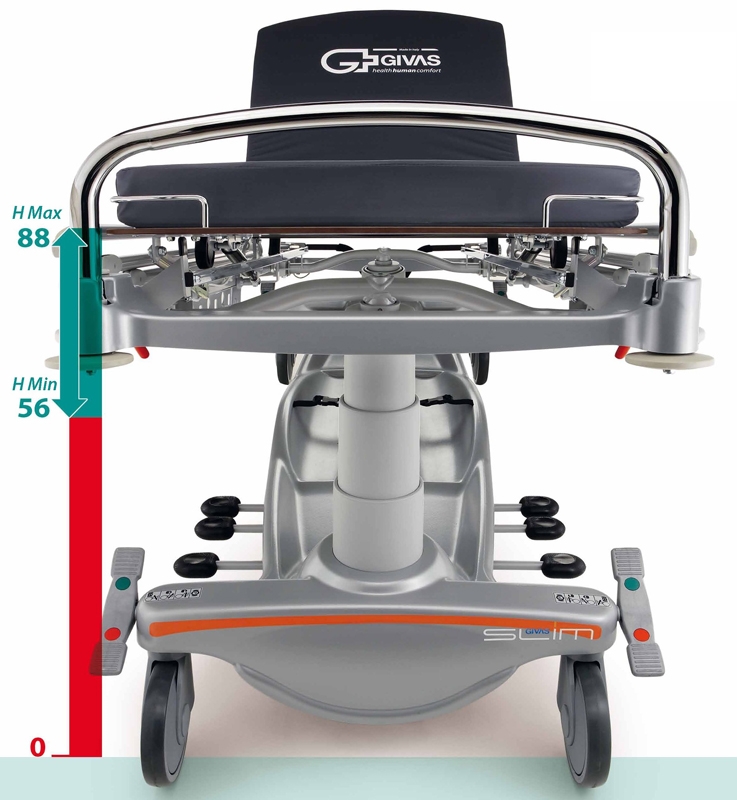

Overall dimensions L 213 / W 83 / H 62.5-93.2 cm
Laying surface dimensions L 191 / W 65 cm.
Inclinations:
– 90 ° backrest
– 25 ° femoral section
– 18 ° leg rest

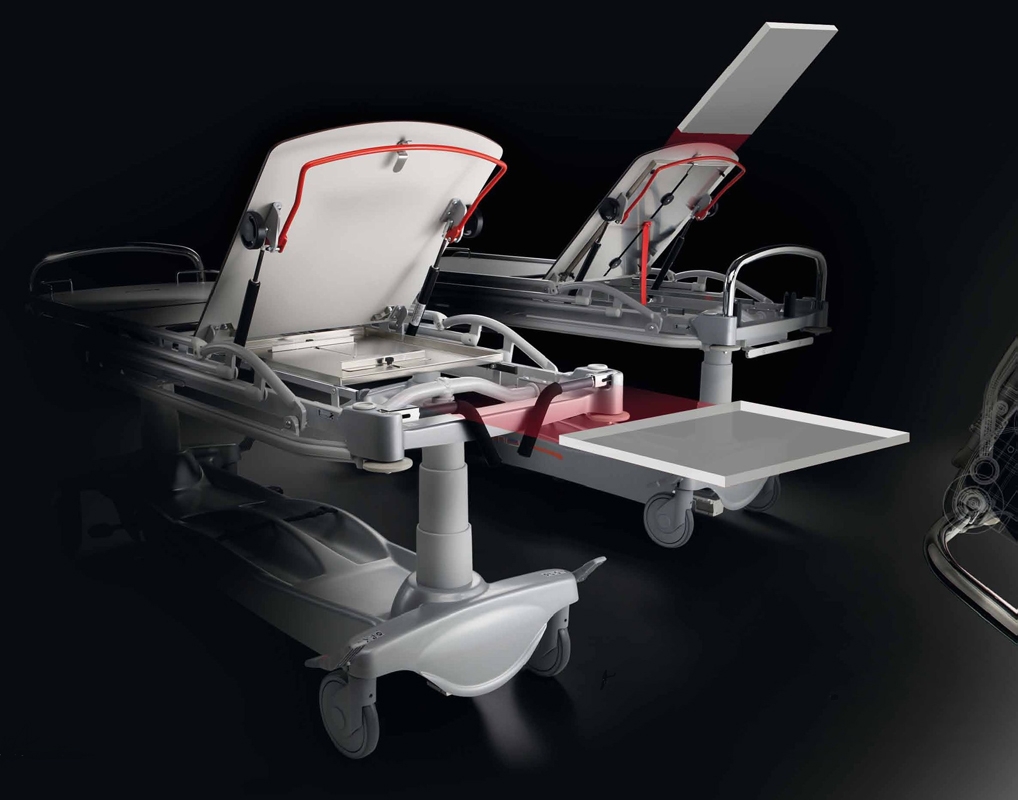

– Trendelenburg / Countertrendelenburg (+/- 12 °).
Safe working load 300 Kg.
Height of the base from the floor: 150 mm.
